66kV Transmission Tower: Types, Specifications & Buyer's Guide

turres transmissionis 66 kV sunt fundamentum retium regionalium potestatis in Asia, Africa et America Meridionali. Haec directio emptoris complectitur genera turrium, specificationes ferri et galvanizationis, spatia libera, pretia et indicem emptionis gradatim.

A 66kV transmission tower is a steel lattice or monopole structure that supports overhead power lines operating at 66,000 volts. Sitting between distribution networks (33kV and below) and high-voltage transmission (132kV and above), 66kV towers typically stand 15–55 m tall with spans of 300–450 m. They are built from hot-dip galvanized structural steel and designed for a service life of 50 years or more.

Specificatio	66kV Tower Typical Range
Altitudo	15–55 m
Tower weight	1,000–5,000 kg
Longitudo span	300–450 m
Terra Clearance	≥ 6.1 m
Main member steel	Q345B / ASTM A572 Gr.50
Tegmen zincicum	≥ 86 µm (610 g/m²), ASTM A123
Vita Designii	50 annos
Insulatora	6 disci per catena (11 kV/discus)

Si tu quaeris turres 66 kV pro projectu utilitatis, pro extensione rete industriali, aut pro linea evacuationis energiae renovabilis, hic liber tibi indicat quid specificare debeas, quid inspicere, et quomodo fornitoribus aestimandis ante emissionem RFQ.

Cur 66 kV est suum proprium classis voltatis

Classis 66 kV est gradus "sub-transmissionis" qui aequilibrat capacitatem transmissionis contra pretium infrastructurae — quod est causa cur manet opus principale regionalium retium in Asia, Africa, Medio Oriente, et partibus Americae Australis.

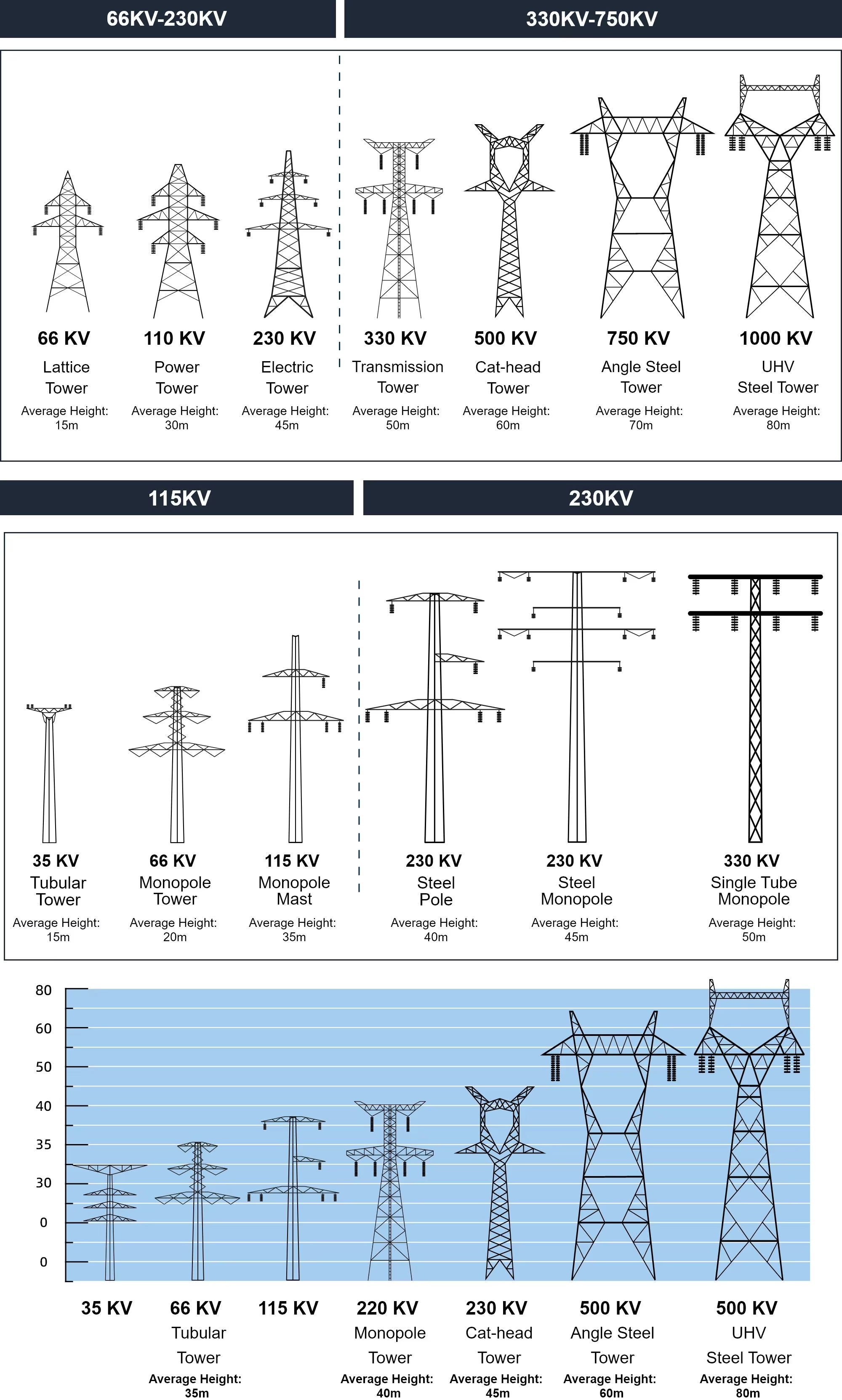

Parametrum	33kv turris	turris 66 kV	turris 132 kV
Typical height	12–25 m	15–55 m	25–65 m
Distantia inter sustentacula	150–250 m	300–450 m	350–500 m
Insulators per string	3 discs	6 discs	9–10 discs
Tower weight	800–2 000 kg	1,000–5,000 kg	3 000–10 000 kg
Main member steel	Q235B	Q345B	Q345B / Q420B
Terra Clearance	≥ 5.5 m	≥ 6.1 m	≥ 6.7 m

Pro una utilitas regionalis, 66 kV offert prope capacitatem classium tensionis superiorum ad fractionem pretii substationis et spatii necessarii (ROW — right-of-way), dum tamen multo robustior manet quam rete distributionis 33 kV. Ideo projecta 66 kV saepius ad fabricam nostram in Hebei revertuntur, quae structuras transmittendi pro plus quam 50 nationibus fabricavit ex anno 1994.

Genera turrium transmittendi 66 kV

Non omnis turris in linea eundem officium gerit. Genus eius a positione sua in itinere et ab oneribus mechanicis quae ferre debet definitur.

Turres suspensionis (tangentes / intermediae)

Turres suspensionis conductores in sectionibus rectilineis per clypas suspensionis sustentant. Onus verticale ex pondere conductorum et glacie ferunt, sed onus longitudinale vix ullum.

• Constituunt fere 80–85% omnium turrium in typica linea
• Levissimae et oeconomicissimae per turrim
• Celerrimae ad fabricandum et ad erigendum

Turres tensionis (turres strain)

Turris tensiones conductores ancorat in mutationibus directionis, transgressionibus longis et terminationibus lineae, utens catenis isolatorum tensionis potius quam clypis suspensionis.

Loca typica:

• Ubi linea directionem mutat plus quam 2°
• Transgressiones fluminum vel valles cum spannibus longis
• Ante et post puncta introitus substationum
• Omnis 3–5 km ut sectiones mortuae ad damnum defectus limitandum

Turres angulares

Turres angulares deviationes horizontales in itinere tractant et secundum angulum, quem ferre possunt, classificantur:

Categoria anguli	Intervalum deviationis	Typicam Applicationem
Angulus Luminis	0–15°	Parva mutationes itineris
Angulus mediocris	15–30°	Mutationes directionis moderae
Angulus gravis	30–60°	Curvae magnae itineris
Iter clausum	60–90°	Conversiones anguli recti, terminations

Turres Terminalis

Turres terminales lineam supra terram ad substationem vel transitionem cavi connectunt. Quia conductores solum ex una parte accedunt, onera longitudinalia inaequalia resistere debent — ideo inter gravissima membra itineris sunt.

Turres Transpositionis

In lineis longioribus quam circiter 100 km, turres transpositionis positiones phasium conductorum omni 30–50 km commutant ut proprietates electricae aequarentur. Sunt structurae specializatae quae accuratam descriptionem postulant — bonum experimentum profunditatis ingenieriae fabricatoris.

Key Technical Specifications

Ferrum structurale

Pars	Gradus Ferrei	Aequivalens internationalis	Fortitudo minima ductilis
Crura turris / membra principalia	Q345B	ASTM A572 Gr.50 / S355JR	≥ 345 MPa
Bracae / membra secundaria	Q235B	ASTM A36 / S235JR	≥ 235 MPa
Membra robusta	Q420B	ASTM A572 Gr.65	≥ 420 MPa

Omnis copia ferri verificanda est contra certificatum fabricae — compositio chemica et proprietates mechanicae — antequam fabricatio incipiat. In nostra planta Hengshui, ferrum advenientis copiae singulae examinantur, et recensio tracciabilitatis sequitur materiam a magazzino usque ad membrum finitum.

Calor-dip galvanizatio

Spissitudo strati zinci est factor maximus unicus pro diuturnitate turris. Specificanda est secundum ambientem, non per praedefinitionem:

Environment	Spissitudo minima strati zinci	ASTM A123 class
Normal / rural	86 µm (610 g/m²)	Grade 65
Industrialis	100 µm (700 g/m²)	Grade 85
Coastal / marine	140 µm (1,000 g/m²)	Grade 100

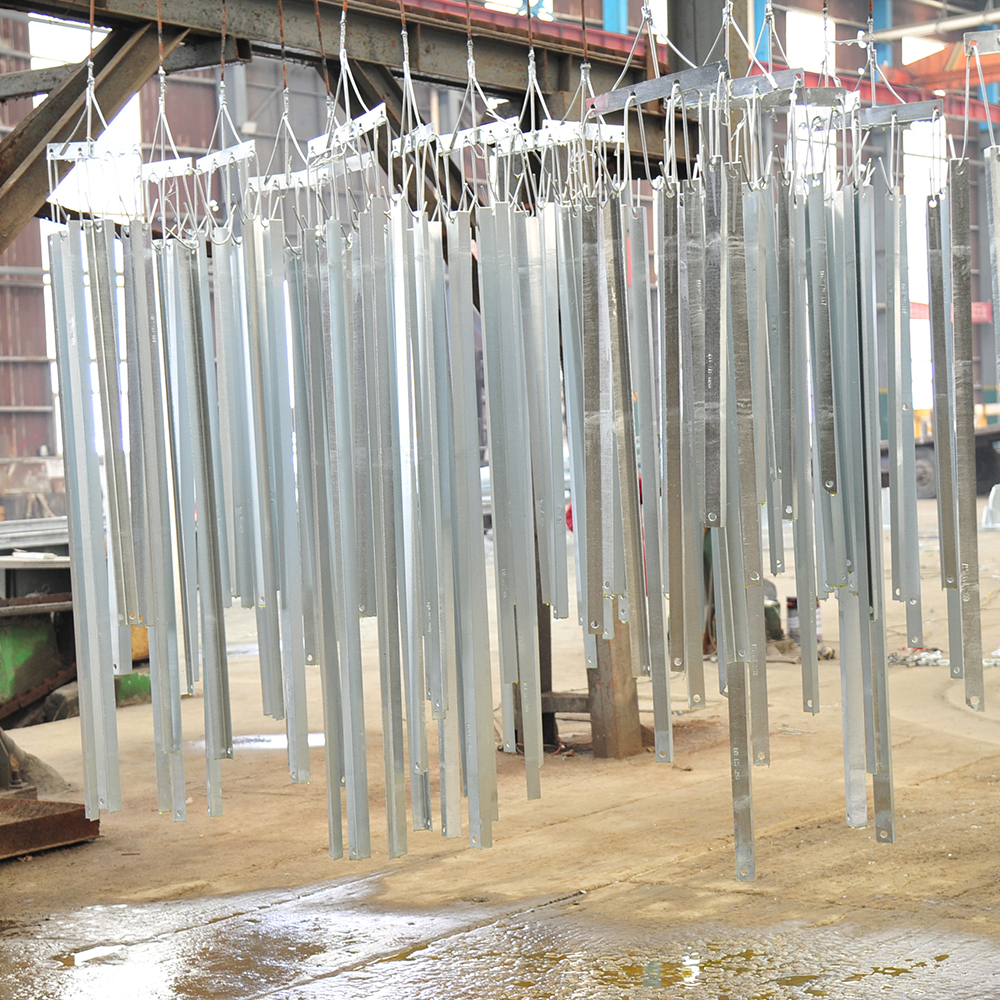

Xinyuan operates its own hot-dip galvanizing plant — 60,000 m² with a designed annual capacity of 300,000 tons — so coating thickness, adhesion and coverage are controlled in-house, not outsourced. The plant is equipped with sewage recycling, waste-acid treatment and zinc-smoke/acid-fog controls, so quality and environmental compliance go together.

Spatia Electrica (secundum IEC 60826 et codices retis nationalis)

Genus spatii liberandi	Distantia Minima
Superficies Terrae (terrenum normale)	6,1 m
Superficies Terrae (terra culta)	7.0 m
Transitus per viam	7,5 m
Transitus per ferriviam	8.5 m
Proximitas ad aedificium (horizontaliter)	4,0 m
Inter fases	1.2 m

Configuratio Isolatorum

66 kV lines use disc-type suspension insulators rated at 11 kV per disc; a normal string carries 6 discs, with the count increasing according to pollution level:

Pollutio Level	Distantia reptationis	Disc count
Lux	16 mm/kV	5–6
Medium	20 mm/kV	6–7
Gravi	25 mm/kV	7–8
Pergrandis Pondus	31–45 mm/kV	8–10

Design and Manufacturing Standards to Verify

Normae descriptionis: IEC 60826 (loading & strength), ASCE 74, GB 50545-2010, DL/T 5154-2012, EN 50341.

Fabricationis Normae: ISO 9001:2015 (quality system), GB/T 2694-2018 (tower fabrication), ASTM A123 / ISO 1461 (galvanizing), AWS D1.1 (welding), ASTM A394 / ISO 898 (bolts).

Xinyuan is certified to ISO 9001, and every order is supported by full documentation: loading calculations, fabrication drawings, galvanizing reports, steel mill certificates, bolt torque specs and erection drawings. Third-party inspectors (SGS, BV, TÜV) are welcome at our factory — most of our export orders are shipped with independent inspection.

Turris reticularis an monopodium?

Pro 66 kV, turres reticulares praecipuunt propter pretium — sed monopodia vincunt ubi spatium et aspectus momenti sunt.

Factor	Cancellos turris	Monopole
Pretium per turrim	$3,000–8,000	$5,000–15,000
Pondus	1,000–5,000 kg	2 000–6 000 kg
Fundamentum	Maior (4 pedes)	Minor (una basis)
Latitudo viae	15–25 m	5–10 m
Tempus erectionis	3–5 dies	1–2 dies
Impetus Visualis	Superior	Inferior
Optime Adaptatum	Ruralis, aperta regio	Urbana, angustae viae

Choose lattice when cost per km matters and terrain is open. Choose monopole when ROW is tight, appearance is a concern, or fast erection justifies the premium.

Foundation Requirements by Soil Type

Foundations typically account for 15–25% of total installed cost — so a geotechnical survey before design is not optional.

Genus terrae	Genus Fundamenti	Profunditas Typica	Concrete grade
Normal soil	Pad / spread footing	2.0–3.5 m	M20–M25
Terra Mollis	Fundatio fluitans	1,5–2,5 m	M25–M30
Lapis	Ancora in saxo	1,0–2,0 m	M25
Aquae imbutae	Fundatio pilorum	6–15 m	M30–M35
Arena / laxa	Fossa perforata	4–8 m	M25–M30

What Drives 66kV Tower Pricing

Typical 66kV tower pricing runs $800–1,400 per ton. The main variables:

• Steel prices — raw material is 60–70% of tower cost, and Q345B tracks global commodity markets
• Complexitas Designi — angle and terminal towers run 30–50% more than suspension towers
• Galvanizing spec — coastal 140 µm coating adds 15–20% over standard 86 µm
• Volumen Ordinis — orders above 500 tons typically achieve 8–12% better unit pricing
• Partus Termini — FOB vs. CIF, inland haulage and port handling all affect landed cost

With a tower production capacity of more than 70,000 tons per year plus in-house galvanizing, we can hold competitive pricing on projects from 50 tons to 5,000+ tons — and we have delivered against those schedules on projects across Africa, Southeast Asia and Latin America.

Procurement Checklist for 66kV Towers

Project information to prepare before RFQ:

• Voltage class and circuit configuration (single or double circuit)
• Total line length and estimated tower count
• Terrain profile (flat, hilly, mountainous)
• Environmental loads (wind zone, ice loading, pollution level)
• Applicable national standards

Supplier qualification to verify:

• Certificatio ISO 9001:2015
• Type test certificates per IEC 60652
• Reference projects with comparable specs
• Acceptatio inspectionis tertii partis (SGS, BV, TÜV)
• Capacitas productiva verificabilis

Documenta petenda:

• Calculi oneris
• Descripta designi fundationis
• Rapportus experimentorum galvanizationis
• Certificationes fabricae ferri (MTCs)
• Specificationes momenti torquendi bullarum
• Descripta coniunctionis et erectionis

Expectationes temporis installationis

Phasis	Duratio	Actiones
INGENIARIA	4–8 hebdomades	Censum, turris designatio, fundamentum designatio
Fabricatio	6–10 hebdomades	Secatio, soldatio, galvanizatio, impachatio
Navigatio	4–8 hebdomades	Navis maritima ad destinatum locum
Fundamentum	2–3 hebdomades per turrim	Excavatio, ferri crines, concretum
Erectio	3–5 dies per turrim	Coniunctio, torquus bullarum, allinatio
Stringere	1–2 dies per spatium	Installatio conductoris, tensio et curvatura

Proiectum centum turrium typice durat 8–12 menses ab signatione contractus usque ad activationem.

Quaestiones Frequentes

Quam alta est turris transmittendi 66 kV? Typice 15–55 m. Turres suspensionis mediocriter 18–25 m, turres tensionis 30–45 m; transitus per fluvium aut terrenum montuosum altitudinem ad 55 m augere potest.

Quam multum ponderat turris 66 kV? 1 000–5 000 kg secundum genus et altitudinem. Turres suspensionis mediocriter 1 200–2 500 kg; turres tensionis et angulares 2 500–5 000 kg. Constructiones duplicis circuitus pondus addunt circiter 40–60%.

Quam longe a se distant turres 66 kV? 300–450 m in terreno normali — usque ad 450 m in plano, 250–350 m in terreno collicoso, et 600–800 m in transitu speciali per fluvium/vallem.

Quod ferrum adhibetur pro turribus 66 kV? Q345B (≈ ASTM A572 Gr.50) pro principales membra, Q235B pro braciatione, omnia thermice zincata ad minimum 86 µm secundum ASTM A123.

Quam diu turris 66 kV durat? Vita designata est 50 annorum; in ruralibus locis mundis cum cura ordinaria, turres usque ad 70+ annos servire possunt. Pollutio industrialis gravis aut maritima vitam efficacem ad 35–40 annos minuere potest, nisi protectio meliorata sit.

Accipe specificationes turris 66 kV pro tuo projecto

Xinyuan Iron Tower Group fabricat structuras transmissionis, communicationis et stationum transformatoriarum ex anno 1994 e fabrica nostra in Hengshui, Hebei — spatium officinarum 120 000 m², 695 operarii, et productio annua turrium ultra 70 000 tonnatarum, exportata in plus quam 50 nationes.

Pro specificationibus turris 66 kV, pretiis aut consultationibus technicis, nos contage ad Electricaltower.com cum detalis projecti tui — grex noster technicus solito respondet intra 24 horas cum suggestionibus praeliminariis.
