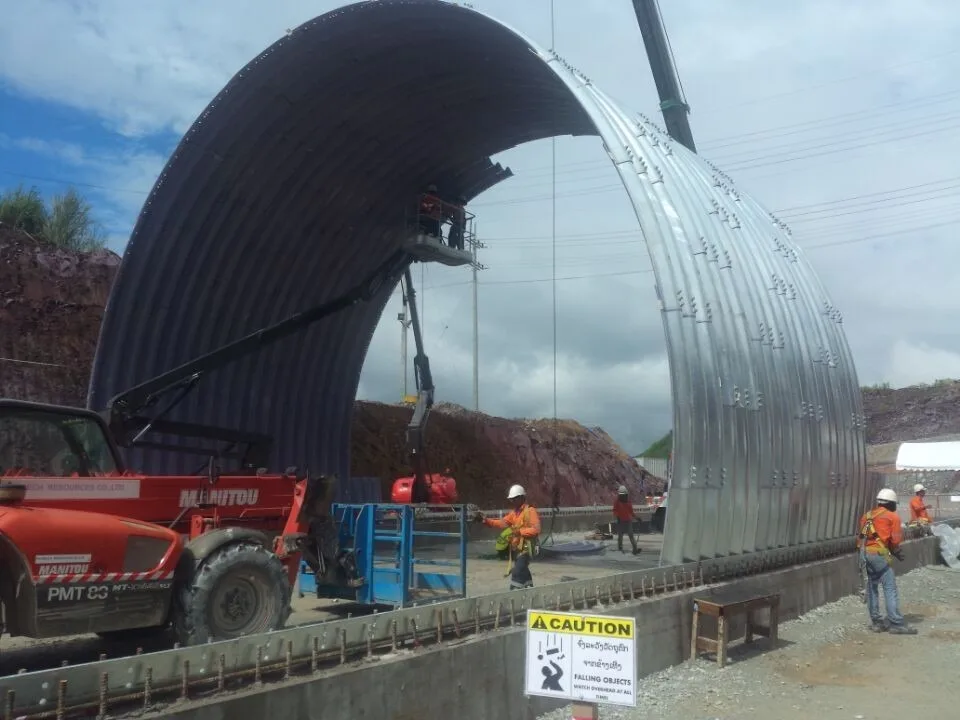

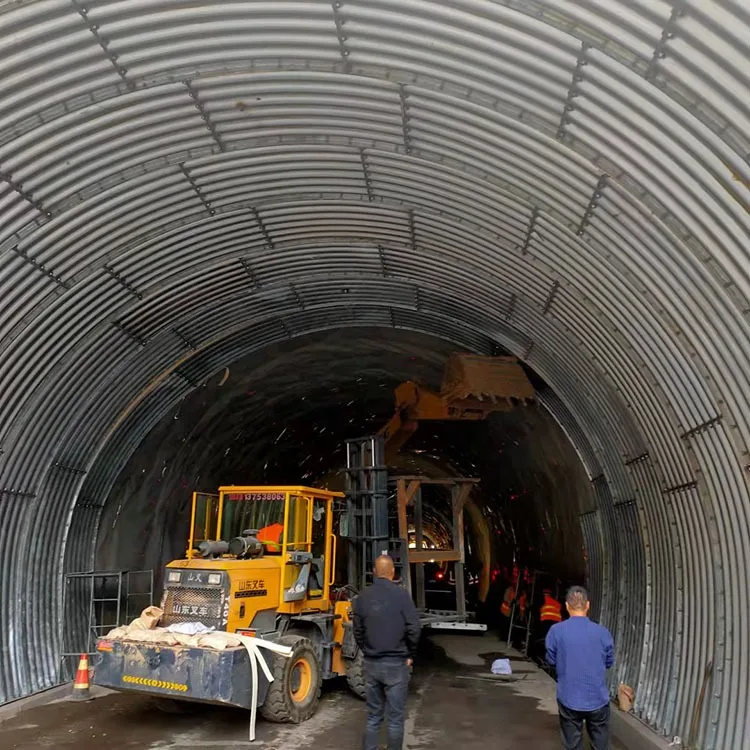

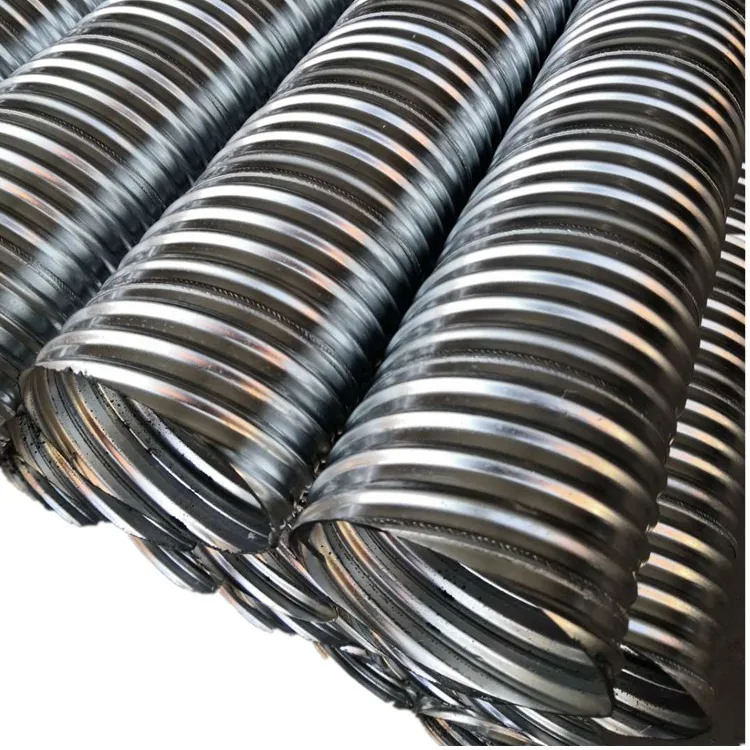

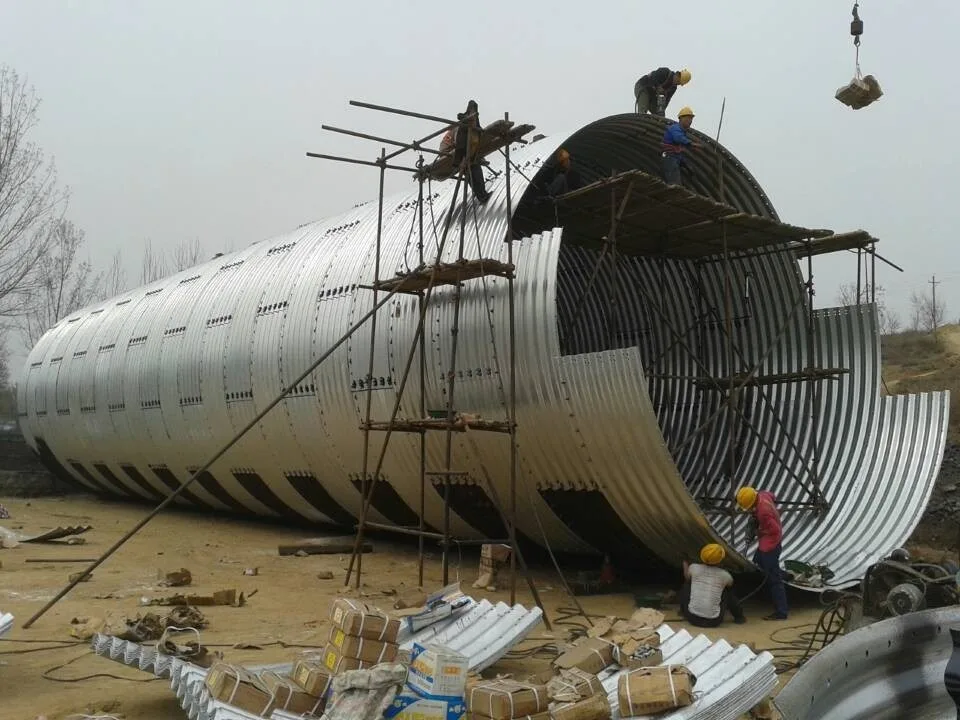

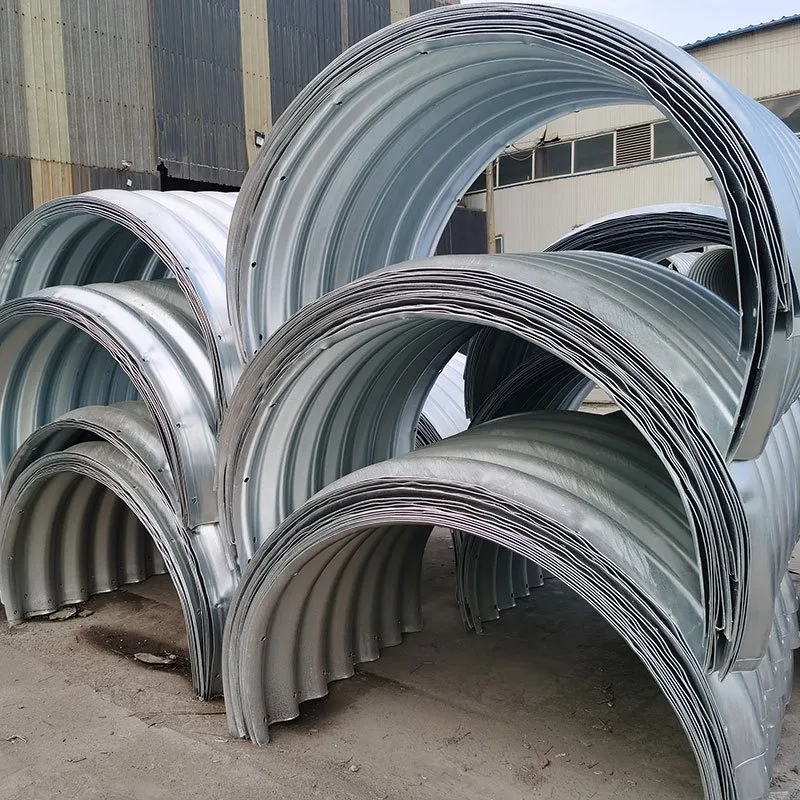

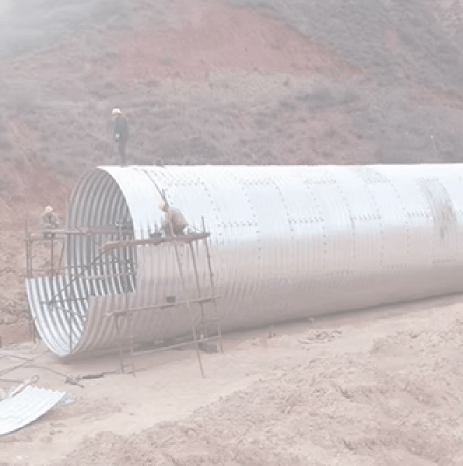

This is a large diameter galvanized corrugated metal pipe with a flexible corrugated design. The galvanization enhances corrosion resistance, making it suitable for various drainage and water transmission applications.
item |
value |
Strength |
Corrugated metal Pipe have great strength in proportion to their weight |
Outer diameter |
500-14000mm or Customized |
Tolerance |
+/-3% |
Shape |
Round, Arch, Horseshoe, Semicircle Shape Pipe Culvert |
Technique |
Extruded |
Production Capacity |
5000 ton/ month |
Payment Terms |
T/T |
Surface Treatment |
Hot Dip Galvanized |
Pipe Dia. (mm) |
Wave Pitch (mm) |
Wave Height (mm) |
Thickness(mm) |
Galvanize (μm) |
400 |
68 |
13 |
1.6-3.0 |
≥70 |
600 |
68/125 |
13/25 |
2.0-4.0 |
≥70 |
900 |
68/125 |
13/25 |
2.0-5.0 |
≥70 |
1000 |
68/125 |
13/25 |
2.0-5.0 |
≥70 |
1250 |
68/125 |
13/25 |
2.0-5.0 |
≥70 |
1500 |
68/125 |
13/25 |
2.0-5.0 |
≥70 |
1600 |
68/125 |
13/25 |
2.0-5.0 |
≥70 |
1800 |
150/200 |
50/55 |
3.0-6.0 |
≥84 |
2000 |
150/200 |
50/55 |
3.0-6.0 |
≥84 |
2500 |
150/200 |
50/55 |
3.0-6.0 |
≥84 |
3000 |
150/200 |
50/55 |
3.0-6.0 |
≥84 |
3500 |
150/200 |
50/55 |
3.0-6.0 |
≥84 |
4000 |
150/200 |
50/55 |
3.0-6.0 |
≥84 |
4500 |
300/380/400 |
110/140/150 |
6.0-12.0 |
≥84 |
5000 |
300/380/400 |
110/140/150 |
6.0-12.0 |
≥84 |
5500 |
300/380/400 |
110/140/150 |
6.0-12.0 |
≥84 |
6000 |
300/380/400 |
110/140/150 |
6.0-12.0 |
≥84 |
