item |
value |
Model Number |

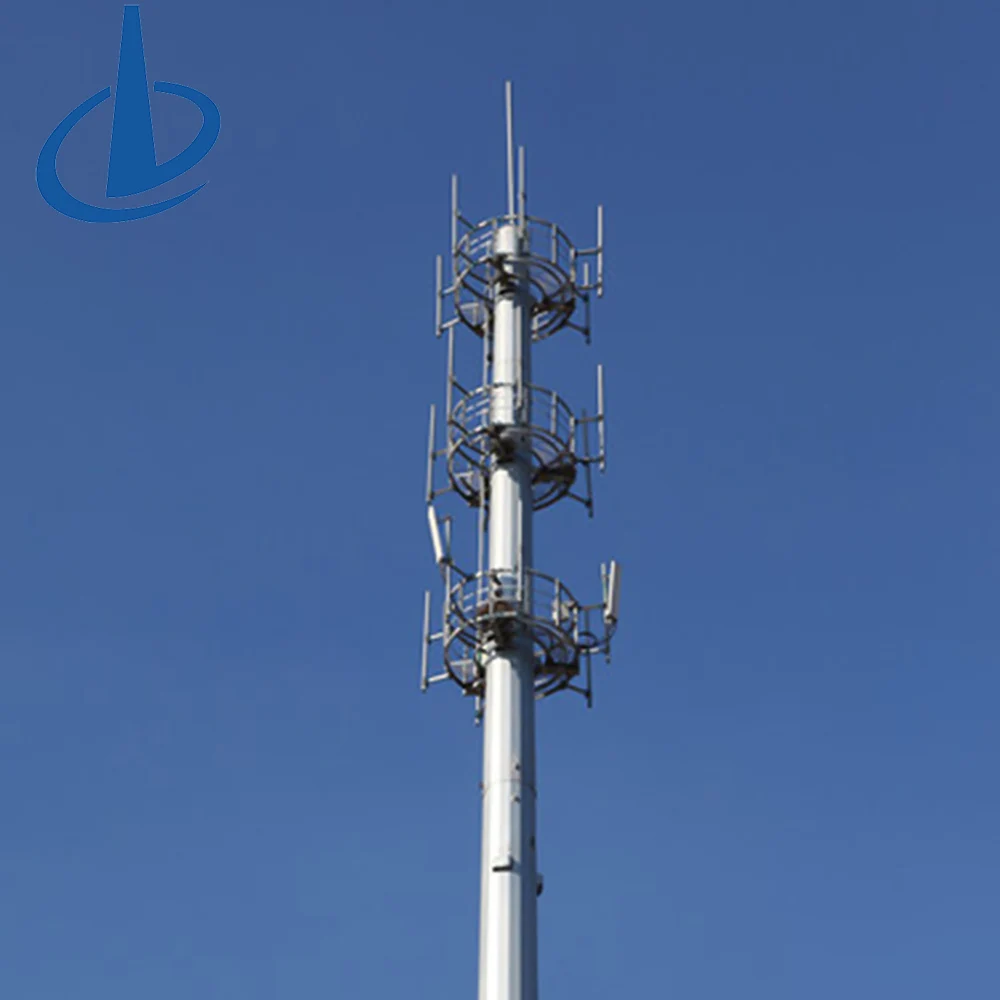

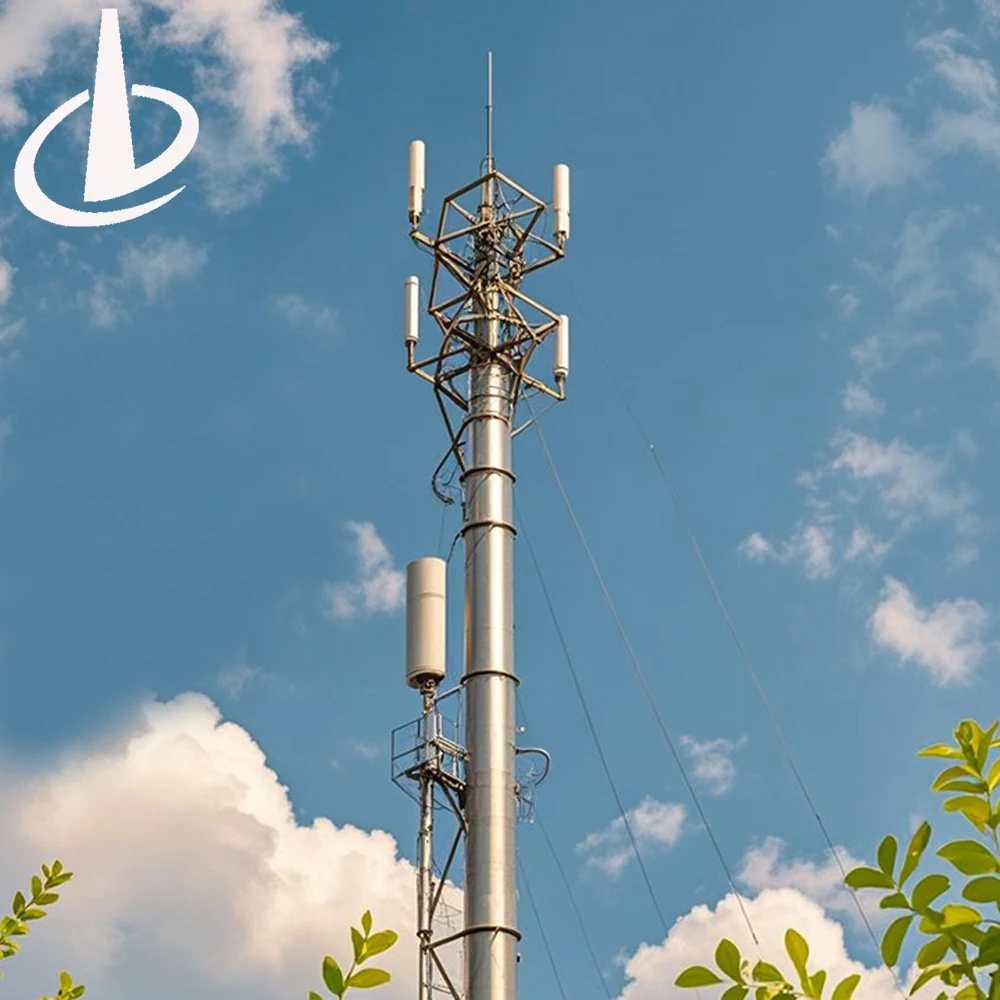

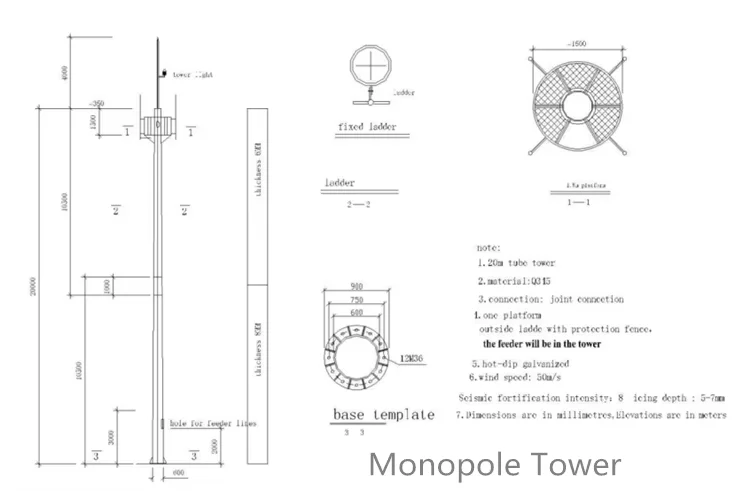

Single tube tower |
Type |
Telecommunication Tower |
Height |
20-60M（65-200 feet） |
Bolts and Nuts |
Mainly grade 6.8 and 8.8 bolts |
Material
|
Hot roll steel Q235,Q345,Q355,Q420,Q460 Normally Q235B, Minimum Yield Strength ≥ 235 N/mm² Q345B, Minimum Yield Strength ≥ 345 N/mm² Q355B, Minimum Yield Strength ≥ 355 N/mm² Q420B, Minimum Yield Strength ≥ 420 N/mm² Q460B, Minimum Yield Strength ≥ 460 N/mm² |
Once Forming |
12m Once forming without joint |
Surface treatment |
Hot dip galvanized Following ASTM A 123, or any other standard by client required. |
Joint of Poles |
Slip joint, flanged connected |

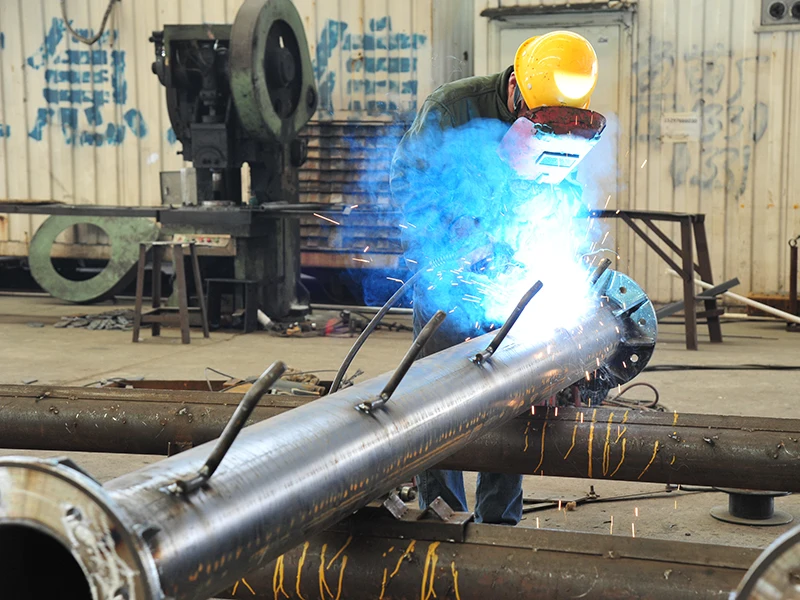

Welding Standard |
AWS(American Welding Society)D 1.1 |
SWind Speed |
40M/S (Force 13) |
Production Capacity |
70000tons/Years |
Packages |
Packing with plastic paper or according to client’s request. |
